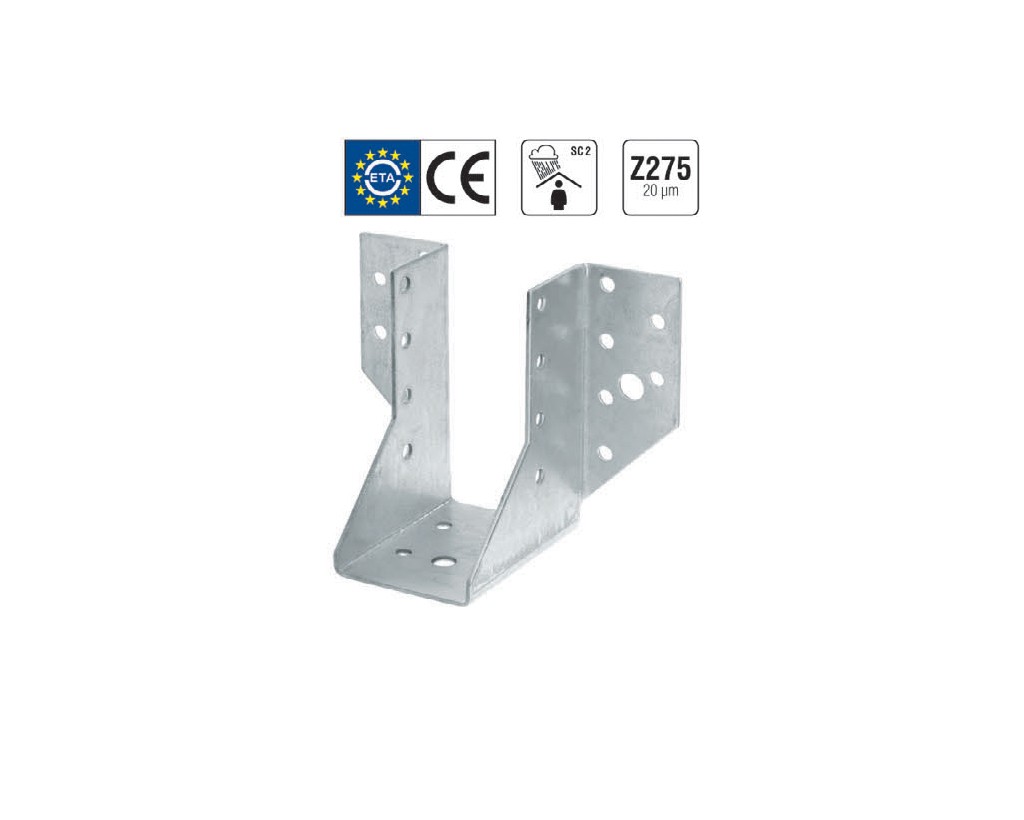

Joist Hangers Type A
JHTA
Specifications
| Material | S 250GD + Z 275 according to DIN EN 10346 |
| Corrosion Protection | 275 g/m2 on both sides- corresponding to a zinc layer thickness of approx 20 µm |
| Mechanical Properties | YS: Min. 250 Mpa, UTS: Min. 350 Mpa |

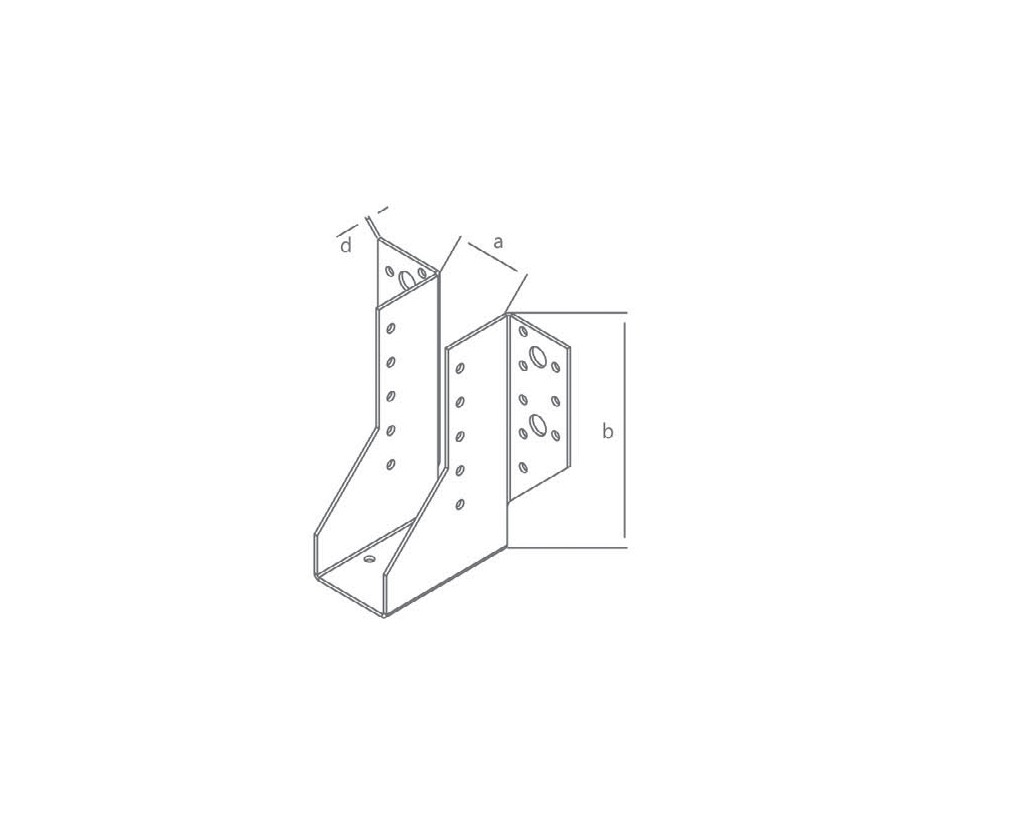

| Dimensions | Approval | ETAG | ||
|---|---|---|---|---|
| a | b | d | ||
| 45 | 96 | 2.0 | CE | ETAG 015 |
| 45 | 137 | 2.0 | CE | ETAG 015 |
| 45 | 168 | 2.0 | CE | ETAG 015 |
| 48 | 96 | 2.0 | CE | ETAG 015 |
| 48 | 137 | 2.0 | CE | ETAG 015 |
| 51 | 93 | 2.0 | CE | ETAG 015 |
| 51 | 135 | 2.0 | CE | ETAG 015 |
| 60 | 100 | 2.0 | - | - |
| 80 | 120 | 2.0 | - | - |
| 100 | 140 | 2.0 | - | - |
| 120 | 160 | 2.0 | - | - |
| 140 | 180 | 2.0 | - | - |
