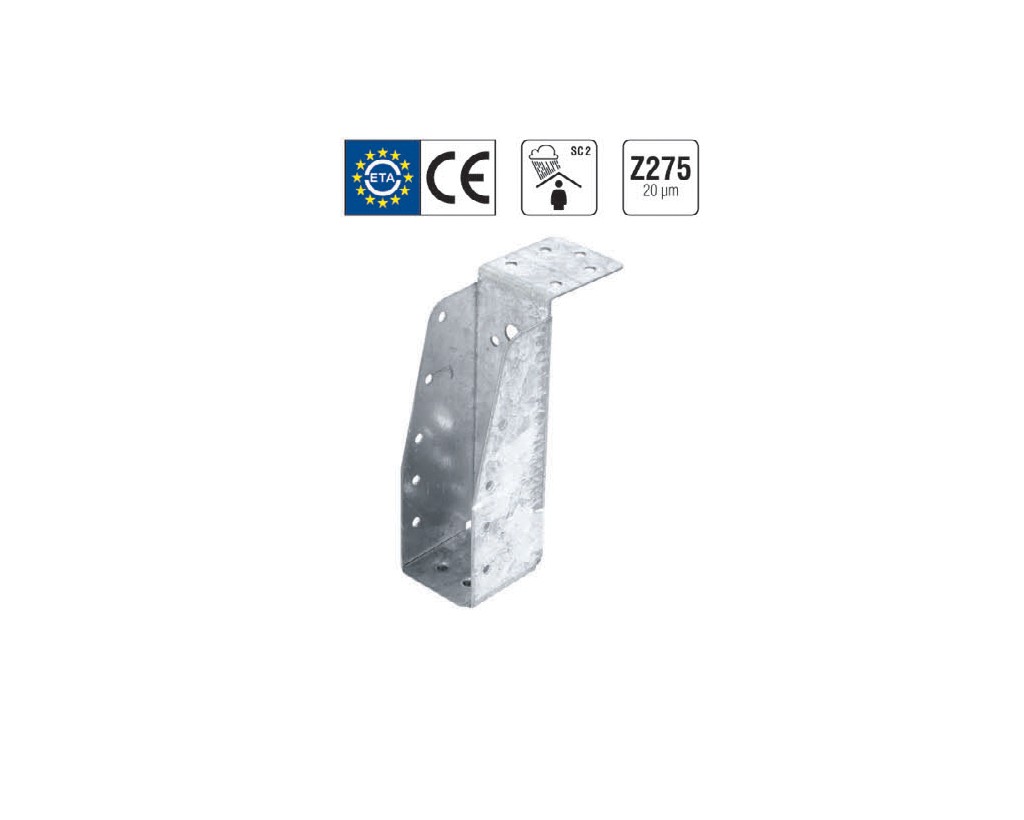

Joist Hangers TYPE C
JHTC
Specifications
| Material | S 250GD + Z 275 according to DIN EN 10346 |
| Corrosion Protection | 275 g/m2 on both sides- corresponding to a zinc layer thickness of approx 20 µm |
| Mechanical Properties | YS: Min. 250 Mpa, UTS: Min. 350 Mpa |

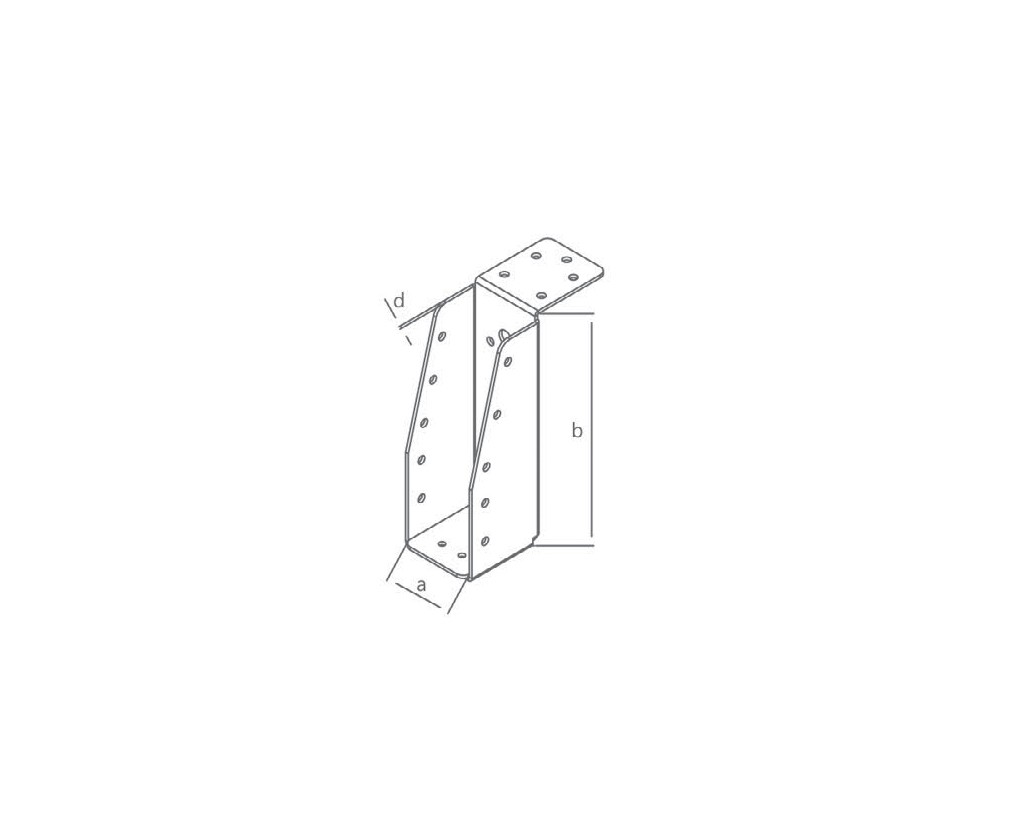

| Dimensions | Approval | ETAG | ||
|---|---|---|---|---|
| a | b | d | ||
| 46 | 146 | 2.0 | CE | ETAG 015 |
| 71 | 171 | 2.0 | CE | ETAG 015 |
