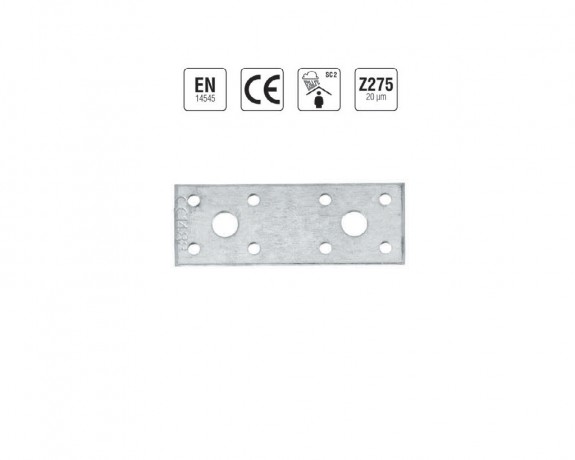

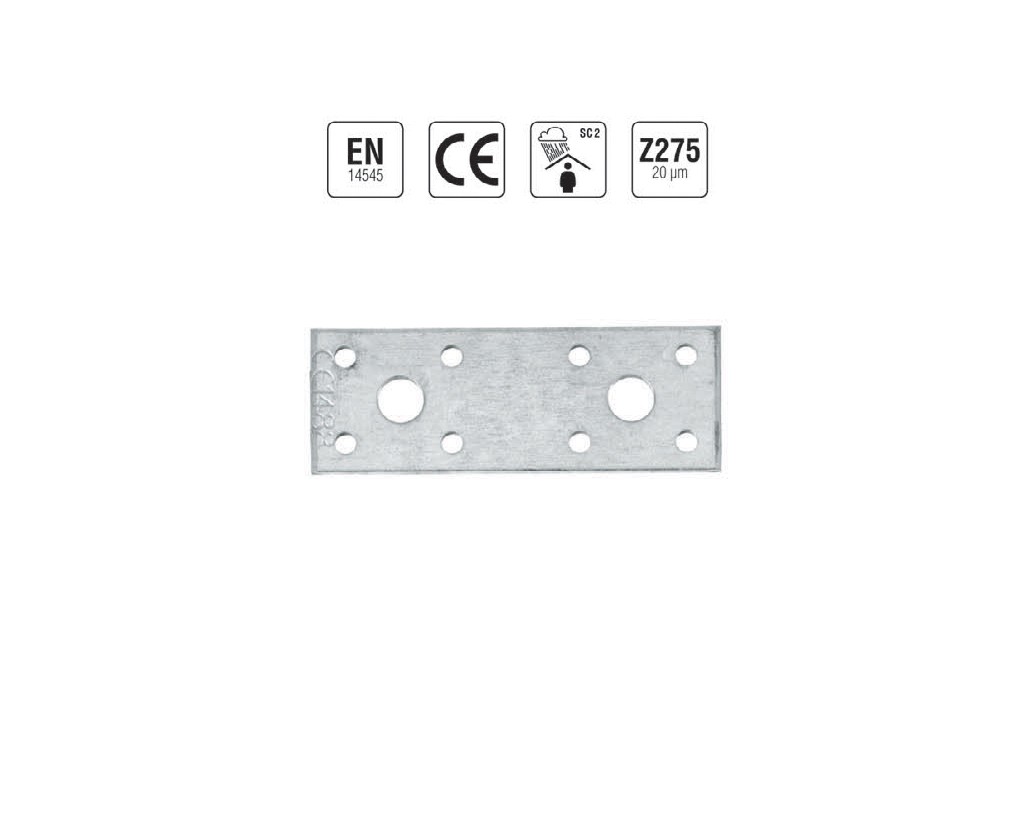

Perforated Plates Type B
PPTB
Specifications
| Material | S 250GD + Z 275 according to DIN EN 10346 |
| Corrosion Protection | 275 g/m2 on both sides- corresponding to a zinc layer thickness of approx 20 µm |
| Mechanical Properties | YS: Min. 250 Mpa, UTS: Min. 350 Mpa |

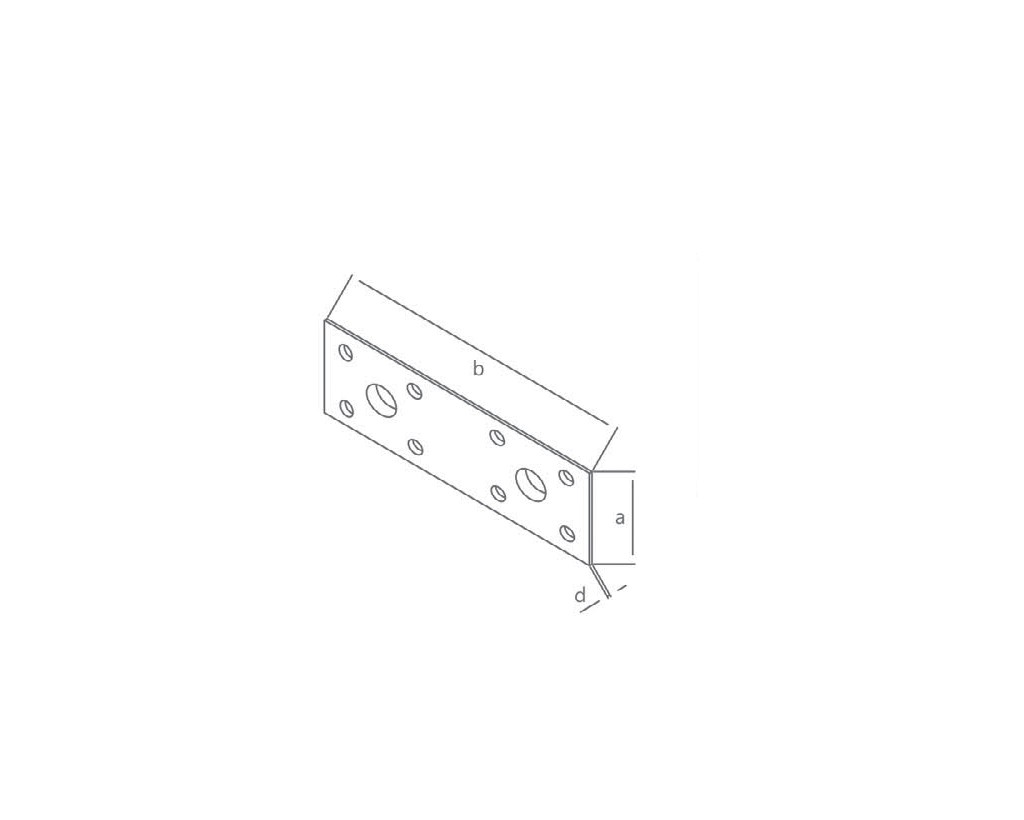

| Dimensions | Approval | ETAG | ||
|---|---|---|---|---|
| a | b | d | ||
| 35 | 100 | 2.5 | CE | ETAG 015 |
| 35 | 200 | 2.5 | CE | ETAG 015 |
| 40 | 175 | 3.0 | CE | ETAG 015 |
| 35 | 90 | 3.0 | - | - |
| 55 | 135 | 3.0 | - | - |
