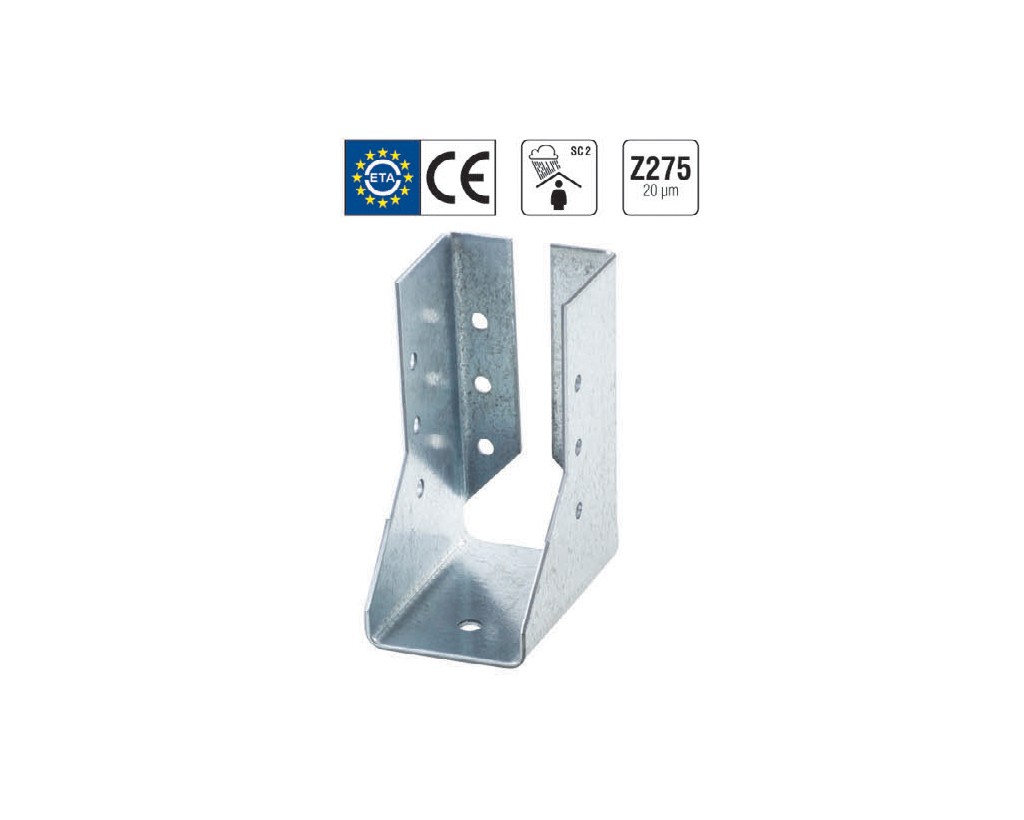

Joist Hangers type B

JHTB

Specifications
Material S 250GD + Z 275 according to DIN EN 10346
Corrosion Protection 275 g/m2 on both sides- corresponding to a zinc layer thickness of approx 20 µm
Mechanical Properties YS: Min. 250 Mpa, UTS: Min. 350 Mpa

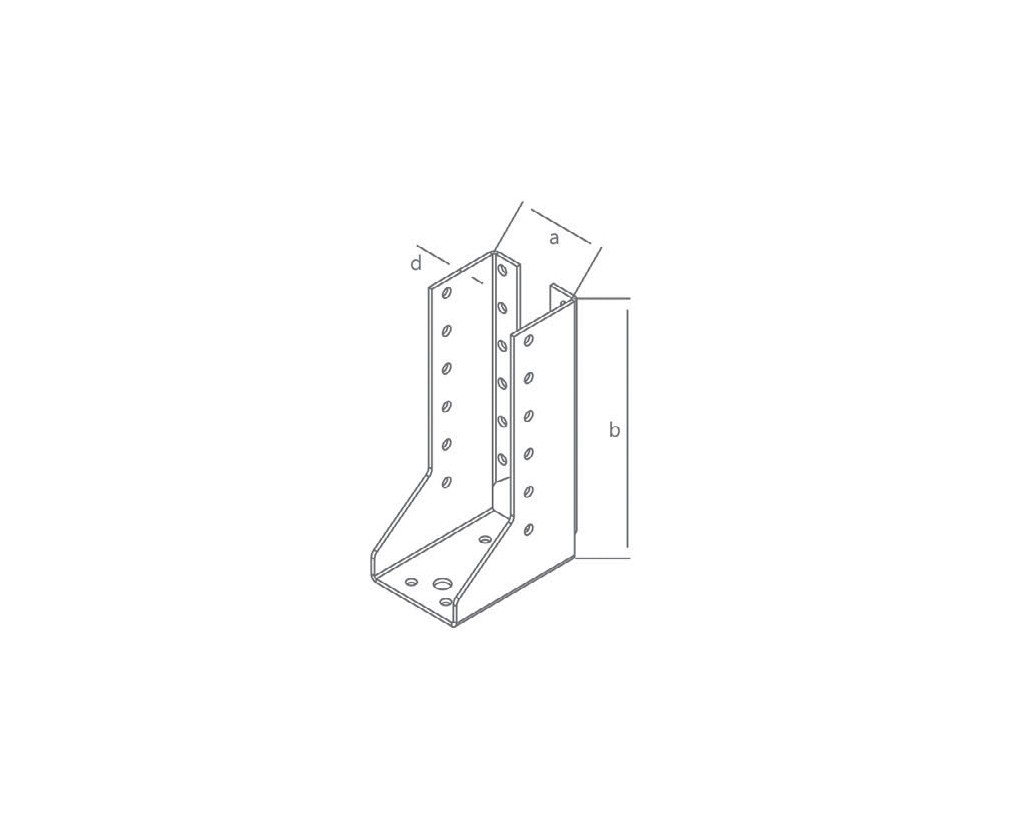

Dimensions Approval ETAG
a b d
45 96 2.0 CE ETAG 015
48 136 2.0 CE ETAG 015
51 105 2.0 CE ETAG 015
75 75 2.0 CE ETAG 015
96 96 2.0 CE ETAG 015
60 100 2.0 - -
80 120 2.0 - -
100 140 2.0 - -
120 160 2.0 - -
140 180 2.0 - -
