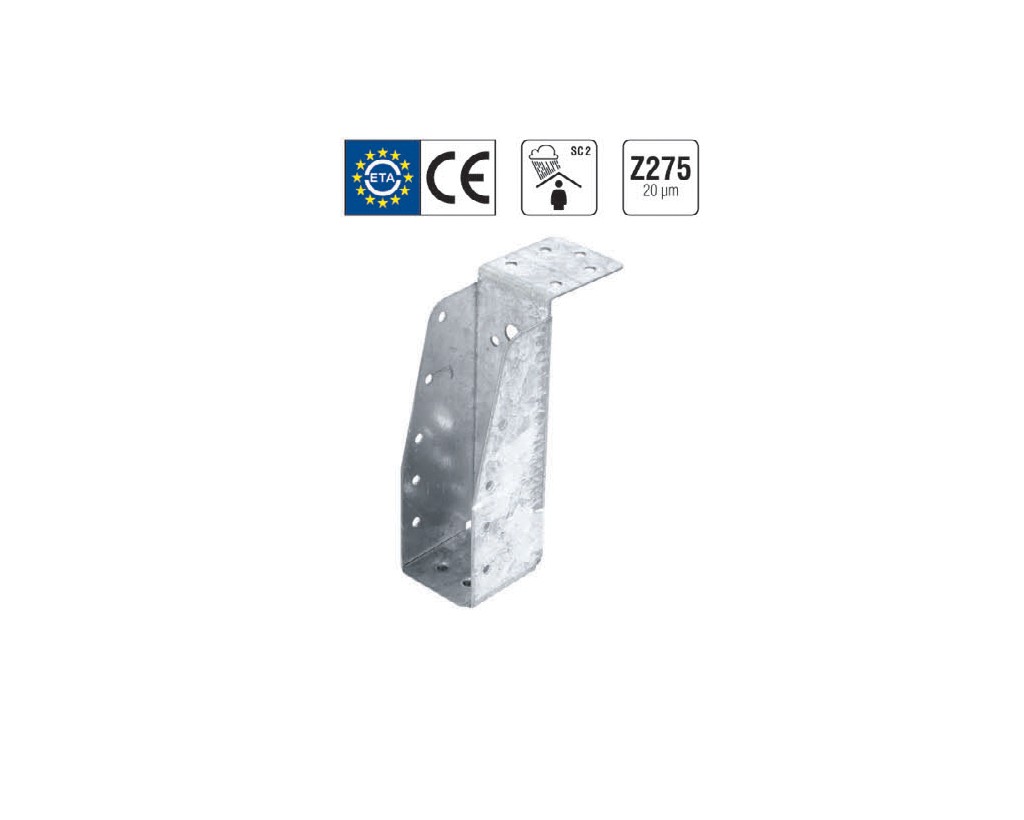

Joist Hangers TYPE C

JHTC

Specifications
Material S 250GD + Z 275 according to DIN EN 10346
Corrosion Protection 275 g/m2 on both sides- corresponding to a zinc layer thickness of approx 20 µm
Mechanical Properties YS: Min. 250 Mpa, UTS: Min. 350 Mpa

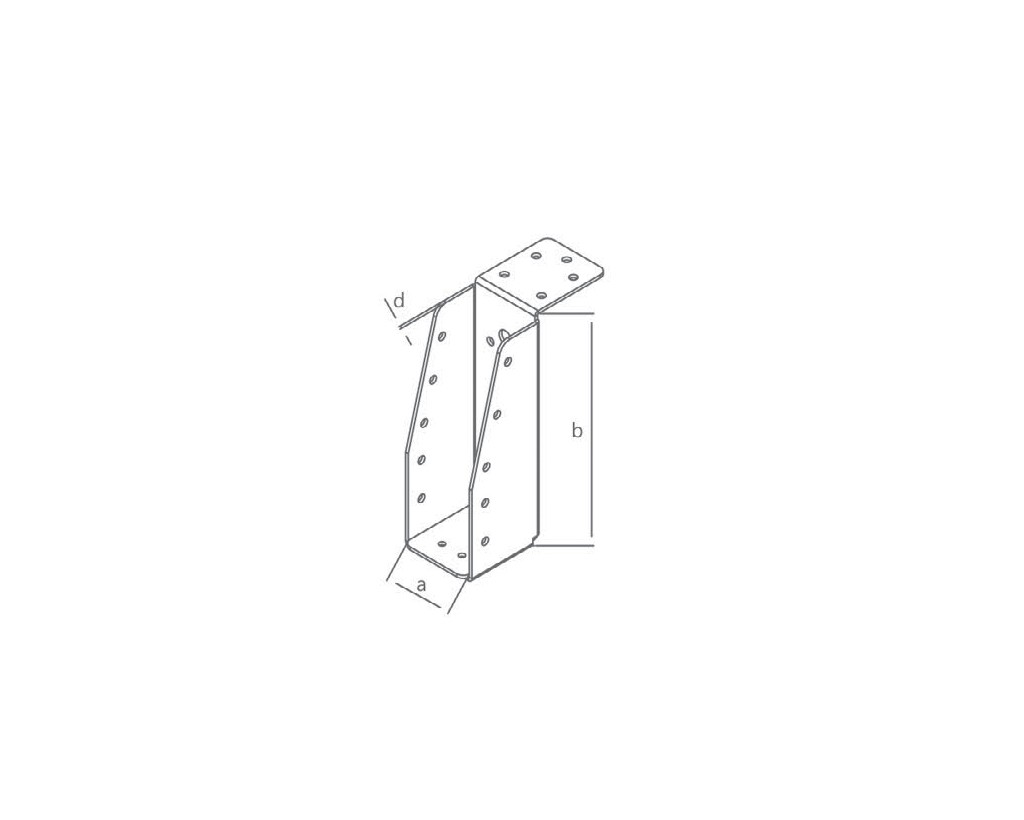

Dimensions Approval ETAG
a b d
46 146 2.0 CE ETAG 015
71 171 2.0 CE ETAG 015
